Google Pixel 7/Pro ROOT 增加VoLTE 5G VoNR支持

镜像下载 https://developers.google.com/android/images

下载对应版本镜Factory镜像 提取init_boot.img

OTA 镜像列表

“cheetah” for Pixel 7 Pro

Version	Download	SHA-256 Checksum
13.0.0 (TD1A.220804.009.A2, Oct 2022)	Link	8138be7172de4b543e54deca7f024a6171d2fdaab34e6347fd1f882b00ba5efe
13.0.0 (TD1A.220804.009.A5, Oct 2022, JP carriers)	Link	f0c1f91730cc856aecc5e5cbdc6b672424c22fe4bed6464a1e39a8060fa7b0f8
13.0.0 (TD1A.220804.031, Oct 2022)	Link	cd81a56734f58f4a6d518c856452fc45eaad3dfa59e5c9d6dbf2893e9a7ac0f6
13.0.0 (TD1A.221105.001, Nov 2022)	Link	aaa230a5d38b8a8af4eb2e024e4b4c58d4e1d187efb3ebacb972f5f812203420
13.0.0 (TD1A.221105.003, Nov 2022, Verizon, Verizon MVNOs)	Link	96668209033b5f43a35a9c43e8efe394032df35603e619044807ec55eabe8e6e
13.0.0 (TD1A.221105.001.A1, Nov 2022, Telia)	Link	1f08ca38e66c4794bed4b22ef8a5baa9317461093532c2b4c51fcaefac11f246
13.0.0 (TQ1A.221205.011, Dec 2022)	Link	23c84042a0d4f5236ff446f1b77deca01b9004b20414b688d571f1d8399724e2
13.0.0 (TQ1A.221205.012, Dec 2022, O2 UK)	Link	c42d9ec4242ae69ec4477106b413351b035272419252abf60ee434061c3f2fae
13.0.0 (TQ1A.230105.002, Jan 2023)	Link	0c8fdd0d42af8477338bf841524327f3aa253cf4a562eadc6a6198c3da88ed19
13.0.0 (TQ1A.230105.002.A1, Jan 2023, Telstra)	Link	c1f202817b5a56ca67d2165605ed0938d118646b22bd46be67f136a5ccc5d6b0
13.0.0 (TQ1A.230205.001.A2, Feb 2023, Telstra)	Link	6a00d994e104ef0308f44e69af47f4f0724809d1a4069b4379433e256dd5f5b9
13.0.0 (TQ1A.230205.001.D2, Feb 2023, T-Mobile, T-Mobile MVNOs)	Link	280b10fdb12f1f9acbbcf7b7dcc12139f7364b74fe7c540ba138f7dd4b4ddc5c
13.0.0 (TQ1A.230205.002, Feb 2023)	Link	ad27a6d7ca78c0d3fb7f51864cc6a9e6bc91f536f9e9bab5da06253df602525f
13.0.0 (TQ2A.230305.008.A3, Mar 2023, WINDTRE/Canada)	Link	b551f7e6a670828cb82da300f6e806e5d7648261513872f0c5a14d9e5b875e51
13.0.0 (TQ2A.230305.008.C1, Mar 2023)	Link	6ac5ff2e14dc16755ea4ea30e6dbe25103b889a36a465194ef943bd0d665b91c
13.0.0 (TQ2A.230405.003.E1, Apr 2023)	Link	b4cde6a1d253d6abadf40179a2693414d558aef37495da19a2335d74e40f53f7
13.0.0 (TQ2A.230505.002, May 2023)	Link	5b5e4a9c4ce9c9b5c62a0961b8c9eda98eaec1fcf0f4e14fc4642efb7a4a3fd4
13.0.0 (TQ3A.230605.012, Jun 2023)	Link	f32168af721ceb8ebab741b94a486dea7bff8a990a694eb290cffe3439617b05

Factory镜像列表：

“cheetah” for Pixel 7 Pro

Version	Flash	Download	SHA-256 Checksum
13.0.0 (TD1A.220804.009.A2, Oct 2022)	Flash	Link	8e7393e1bd7f86d76d75cdea988d5e4ebfded3a50fac26d774b9eb07152c1ed5
13.0.0 (TD1A.220804.009.A5, Oct 2022, JP carriers)	Flash	Link	c68659bdd1d2b0b9a1740daa1502acbbf1b535be5b7e5bada157c82ef5fbf5c5
13.0.0 (TD1A.220804.031, Oct 2022)	Flash	Link	6152f6f3d8437be0ef840ed7056f15d0f52ba181a1d029ff84bd9d83c860d49f
13.0.0 (TD1A.221105.001, Nov 2022)	Flash	Link	f2793a62a48bc840b892e74dd515739b657d2727c25edd074064e3ab019e73bf
13.0.0 (TD1A.221105.003, Nov 2022, Verizon, Verizon MVNOs)	Flash	Link	021be73c7c602de0fdefcd3a4c43d0d745188b7847880a0d4a2ccb6aa64c47a6
13.0.0 (TD1A.221105.001.A1, Nov 2022, Telia)	Flash	Link	8c02369293402dc629728e0966d2ccc1976f513ed783ea2f64dcd1e55e221b3e
13.0.0 (TQ1A.221205.011, Dec 2022)	Flash	Link	b144b4262b6a349efe756a9446c9e9ce9123d839280f5e5b06ebbc661c577b68
13.0.0 (TQ1A.221205.012, Dec 2022, O2 UK)	Flash	Link	4406695deca324c94ef49b9be594362e350d45bdf2e7fad40cf147cdcfe5dc89
13.0.0 (TQ1A.230105.002, Jan 2023)	Flash	Link	34d676ff4d260f02d9ada1f16f24fd7995c9b9ca832410099950d9c510db8793
13.0.0 (TQ1A.230105.002.A1, Jan 2023, Telstra)	Flash	Link	6632344c9647b04bfce622b0decf3733dfb3bc5c3b2c068ea118f8631c1b39b8
13.0.0 (TQ1A.230205.001.A2, Feb 2023, Telstra)	Flash	Link	f81c82a2687ee092b675e8329628a00dfc5ce722e47d0603c000a3dd8ddfb68d
13.0.0 (TQ1A.230205.001.D2, Feb 2023, T-Mobile, T-Mobile MVNOs)	Flash	Link	f2c2d91a753f96c45cb7d31c79929eeac408ba4abff9603cf2c786e36aa87042
13.0.0 (TQ1A.230205.002, Feb 2023)	Flash	Link	4439927e14a29c71499ed7796756b7197e76096c197c7f43634638ccea89e237
13.0.0 (TQ2A.230305.008.A3, Mar 2023, WINDTRE/Canada)	Flash	Link	da1d99156fa03162ee8216277a8ff06b626f16efbc7e8b5d12096c5a10ede1ef
13.0.0 (TQ2A.230305.008.C1, Mar 2023)	Flash	Link	cefc4e564cb920af510a44a9cdb982ba4e8af879f6796490e03128f12f92189e
13.0.0 (TQ2A.230405.003.E1, Apr 2023)	Flash	Link	1f04869e24347c7b01a238bfdbeb472f68f557986da3533872158e4a4e6caa14
13.0.0 (TQ2A.230505.002, May 2023)	Flash	Link	fe44ced0de116faaabf4928ee3db7f382d034d54fe5da7dab7575ba4febd9a89
13.0.0 (TQ3A.230605.012, Jun 2023)	Flash	Link	9cb9bc3f86fe23279575dddb713096ac90009b4ad60fa82c5fd13909dc1dc3e4

选取版本：

13.0.0 (TQ3A.230605.012, Jun 2023)

Flash

Link

9cb9bc3f86fe23279575dddb713096ac90009b4ad60fa82c5fd13909dc1dc3e4

patch init_boot.img

fastboot flashing unlock

adb reboot bootloader

fastboot flash init_boot magisk_patched-26102_dMik0.img

“增加 Pixel 7Pro 5G支持

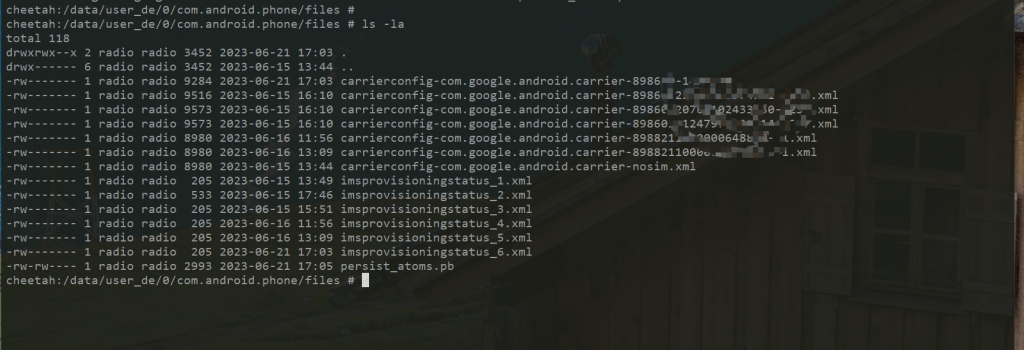

ROOT后在 /data/user_de/0/com.android.phone/files 导出carrierconfig-com.google.android.carrier-89*****.xml文件，

文件最末（</int-array> 和</bundle> 中间 ）增加代码：（多张卡的情况 ：每有一张SIM卡插入手机立即生成一份XML配置文件 89*******为 ICCID：Integrate circuit card identity 集成电路卡识别码即SIM卡卡号 ）

<boolean name="enhanced_4g_lte_on_by_default_bool" value="true" />
<boolean name="carrier_volte_available_bool" value="true" />
<boolean name="vendor_hide_volte_settng_ui" value="false" />
<boolean name="hide_lte_plus_data_icon_bool" value="false" />
<boolean name="vonr_enabled_bool" value="true" />
<boolean name="vonr_setting_visibility_bool" value="true" />
<boolean name="show_4g_for_lte_data_icon_bool" value="true" />

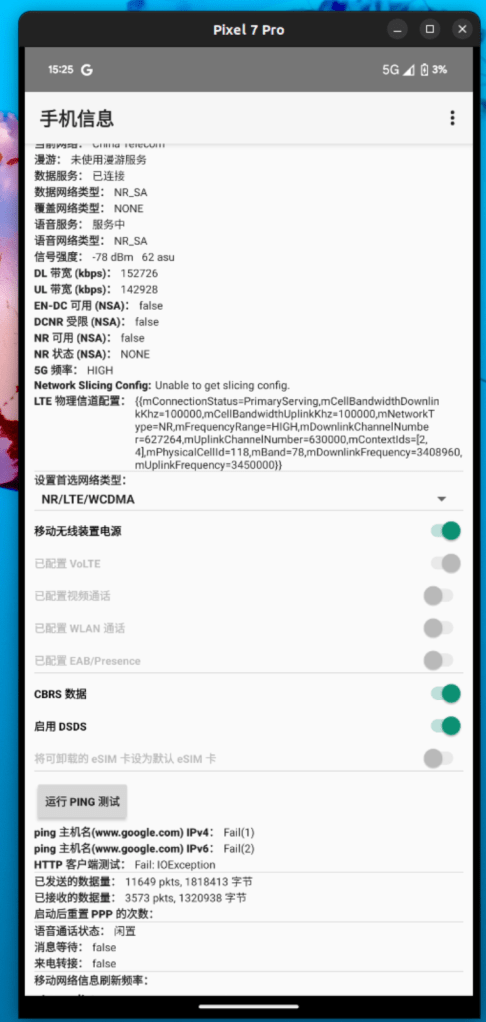

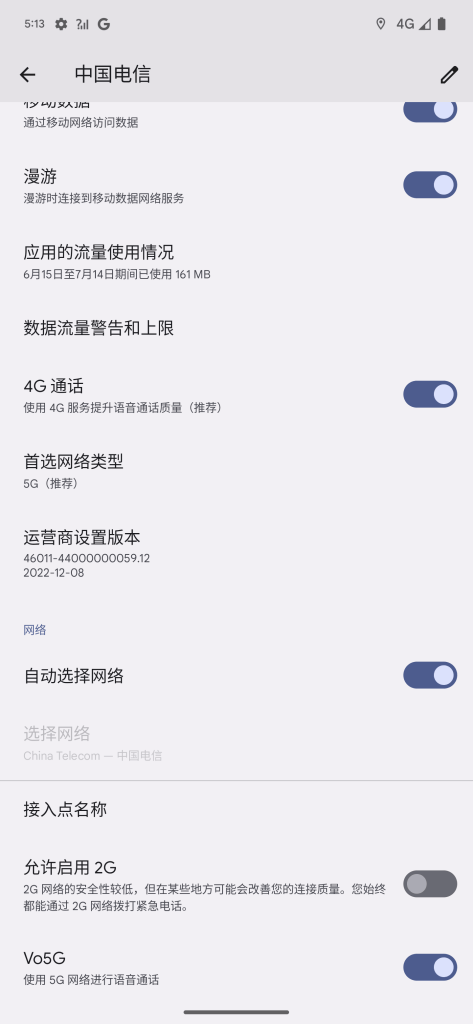

效果

</int-array>
<boolean name="enhanced_4g_lte_on_by_default_bool" value="true" />
<boolean name="carrier_volte_available_bool" value="true" />
<boolean name="vendor_hide_volte_settng_ui" value="false" />
<boolean name="hide_lte_plus_data_icon_bool" value="false" />
<boolean name="vonr_enabled_bool" value="true" />
<boolean name="vonr_setting_visibility_bool" value="true" />
<boolean name="show_4g_for_lte_data_icon_bool" value="true" />
</bundle>

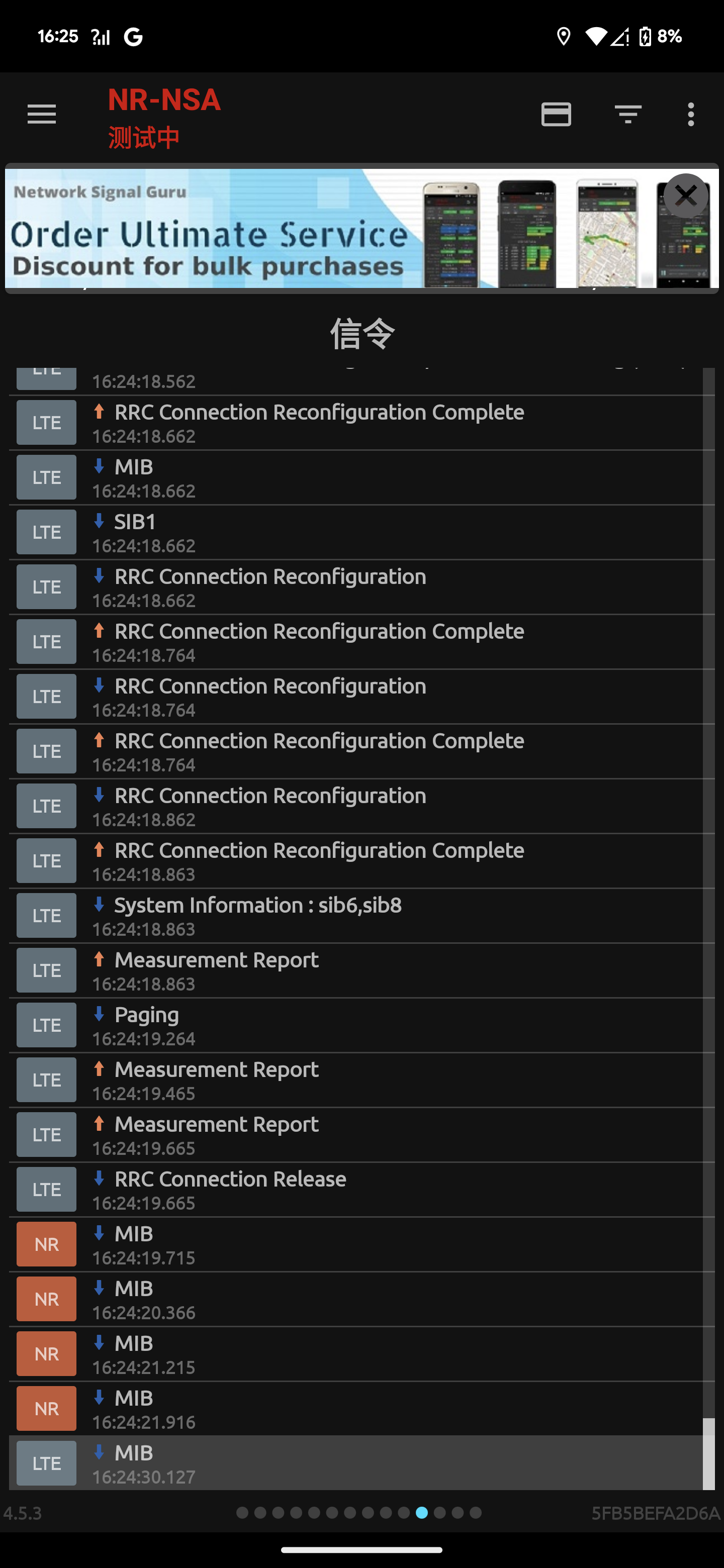

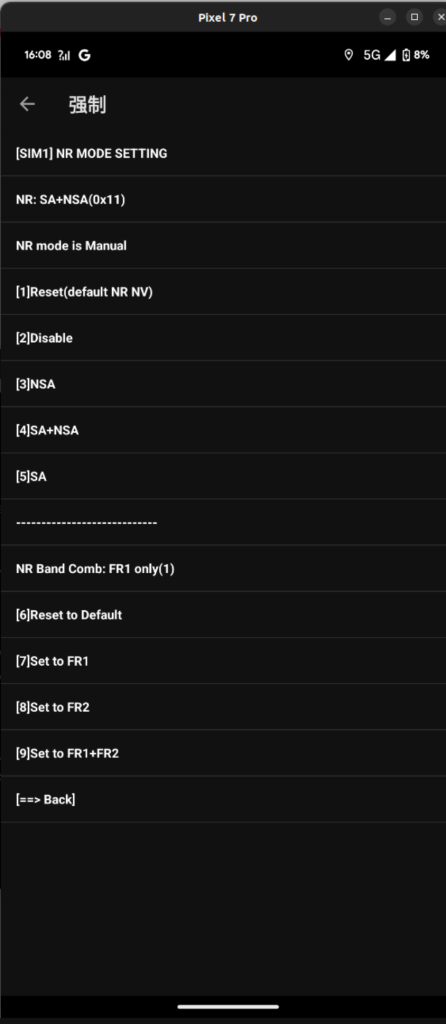

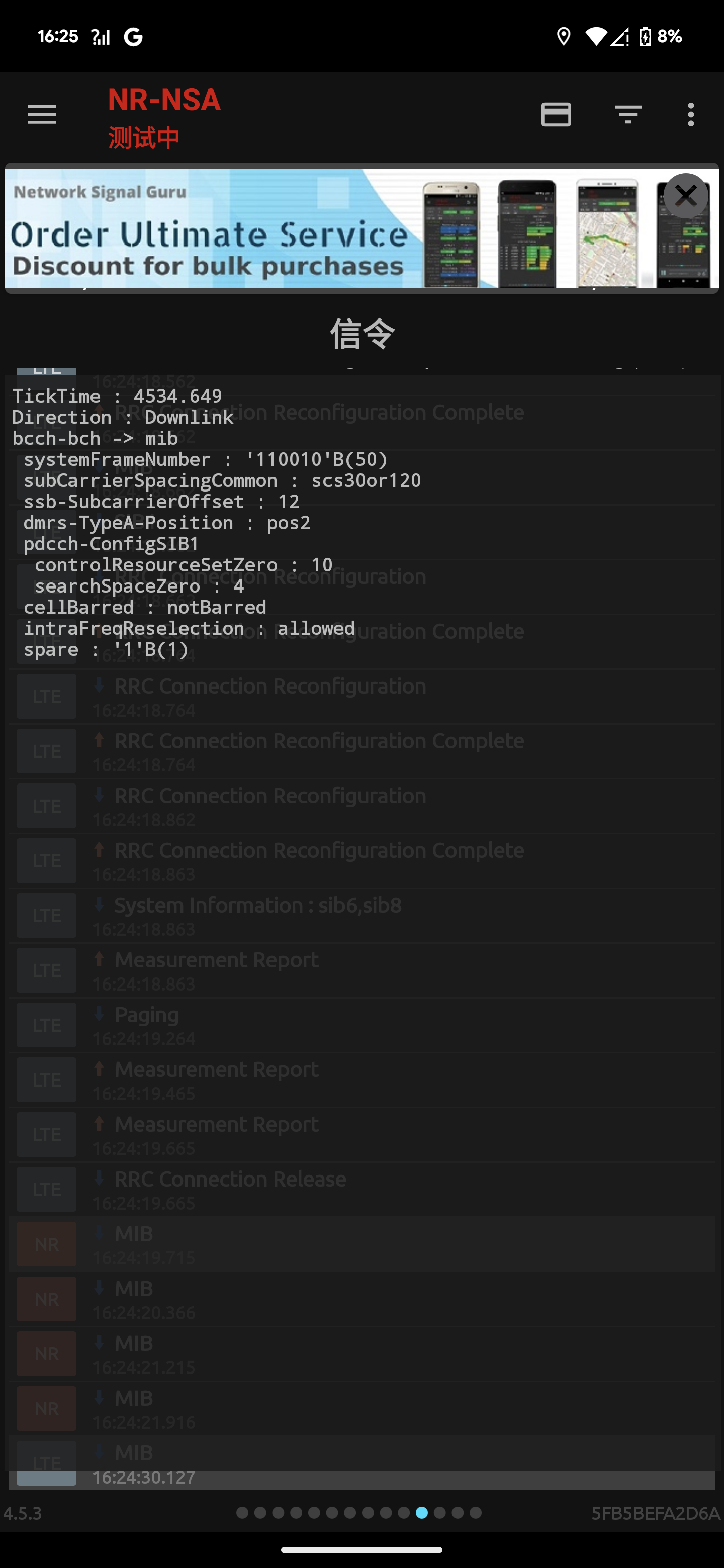

网优软件 信号大师 —> 强制功能 —> SIM 1 —> 3 NR MODE SETTING —> 4 SA+NSA 以及 NR Band 选择 Set To FR1 （FR2 为毫米波频段 大陆地区5G 没用毫米波）

Google Pixel 7 Pro (US) (GE2AE) 4G/5G Bands and Combos
Modem Specification
Modem Model  Shannon 5300
Release Year  2022
LTE DL/UL Modulation  256QAM / 64QAM
LTE Bands  2, 4, 5, 12, 13, 14, 17, 25, 26, 29, 30, 41, 46, 48, 66, 71
LTE 4x4 Bands  2, 4, 25, 30, 41, 48, 66
LTE Category (DL/UL)   18 / 13
LTE Max Speed (DL/UL)   1200 / 150 Mbps
NR NSA Bands  2, 5, 41, 66, 71, 261
NR SA Bands  41, 71


国内常用的B3 B40频段不在硬件射频支持范围  后续有空试试Samsung ShannonDM改NV

Pixel 7Pro 与 Pixel 6开DIAG调试的方法 貌似不大一样，后续有空再看看

2023/06/21 更新

B1

B3

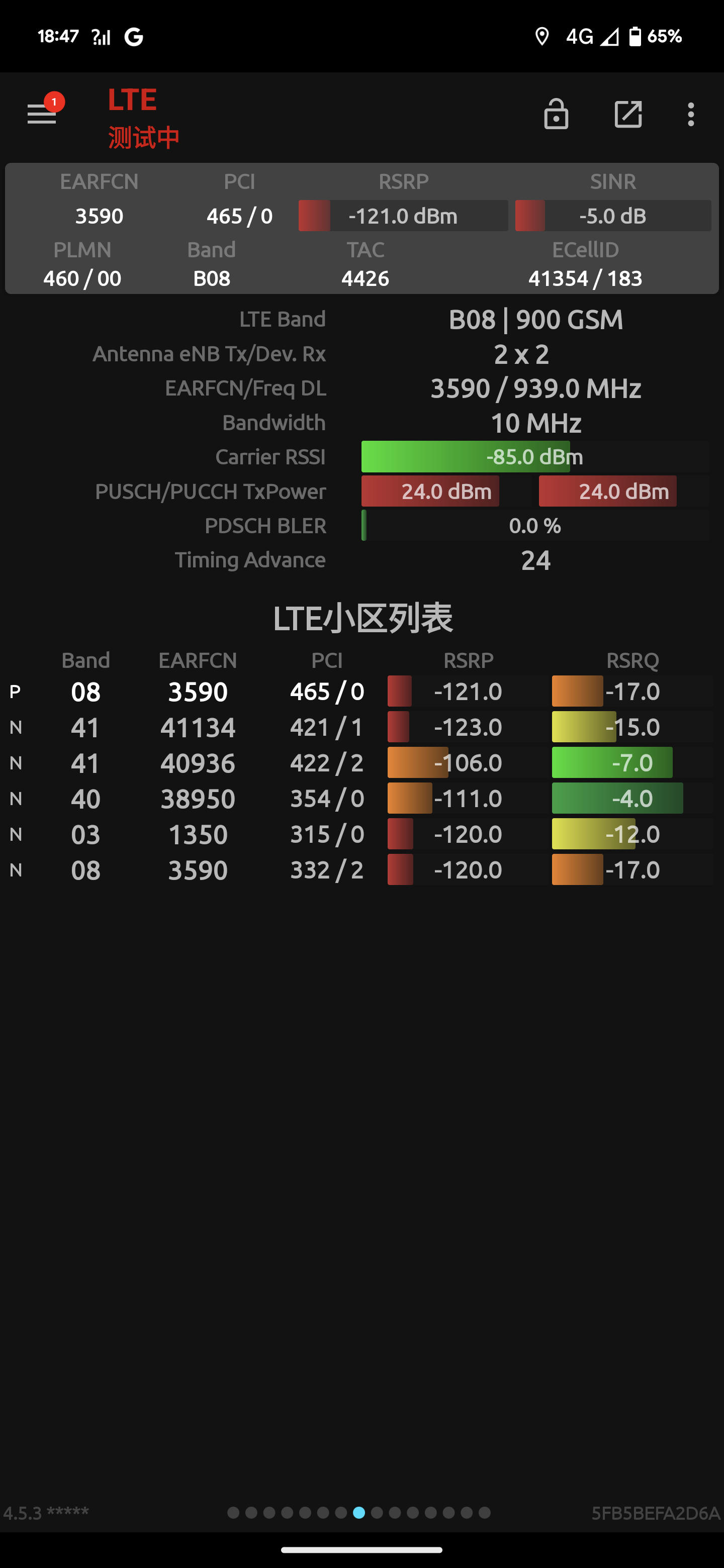

B8

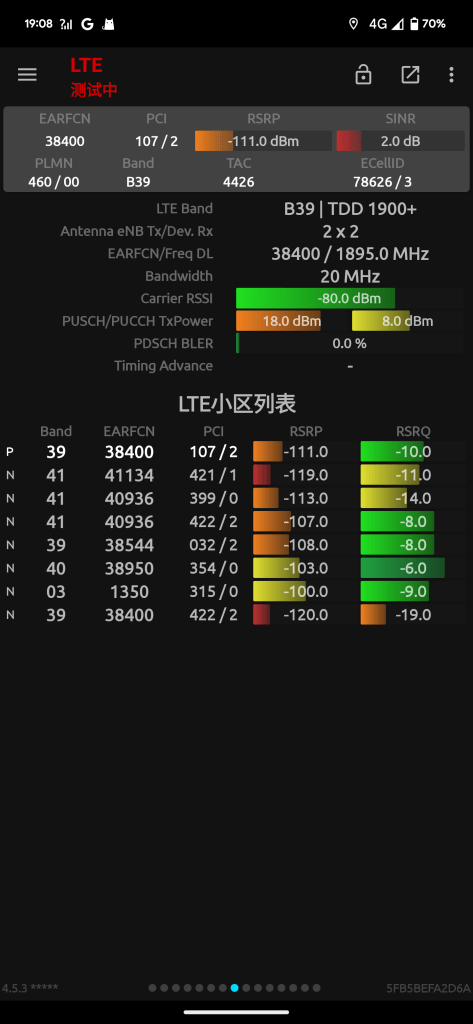

B39

B40

2023-07-10更新：

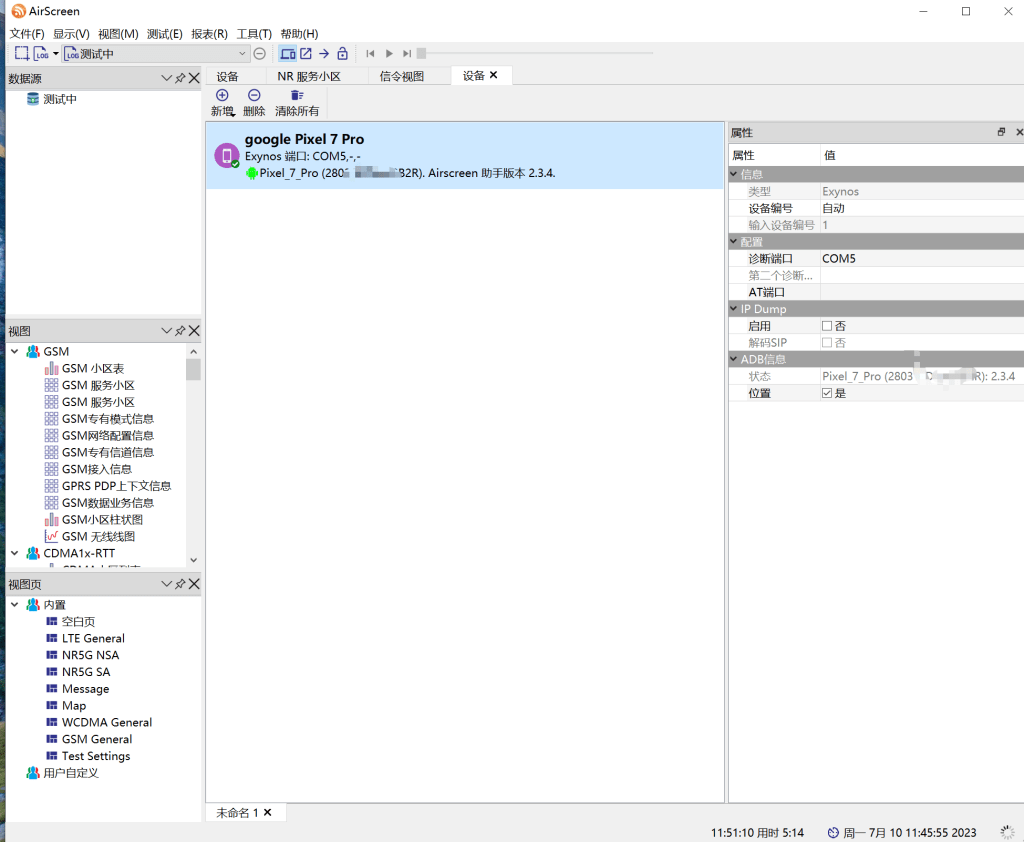

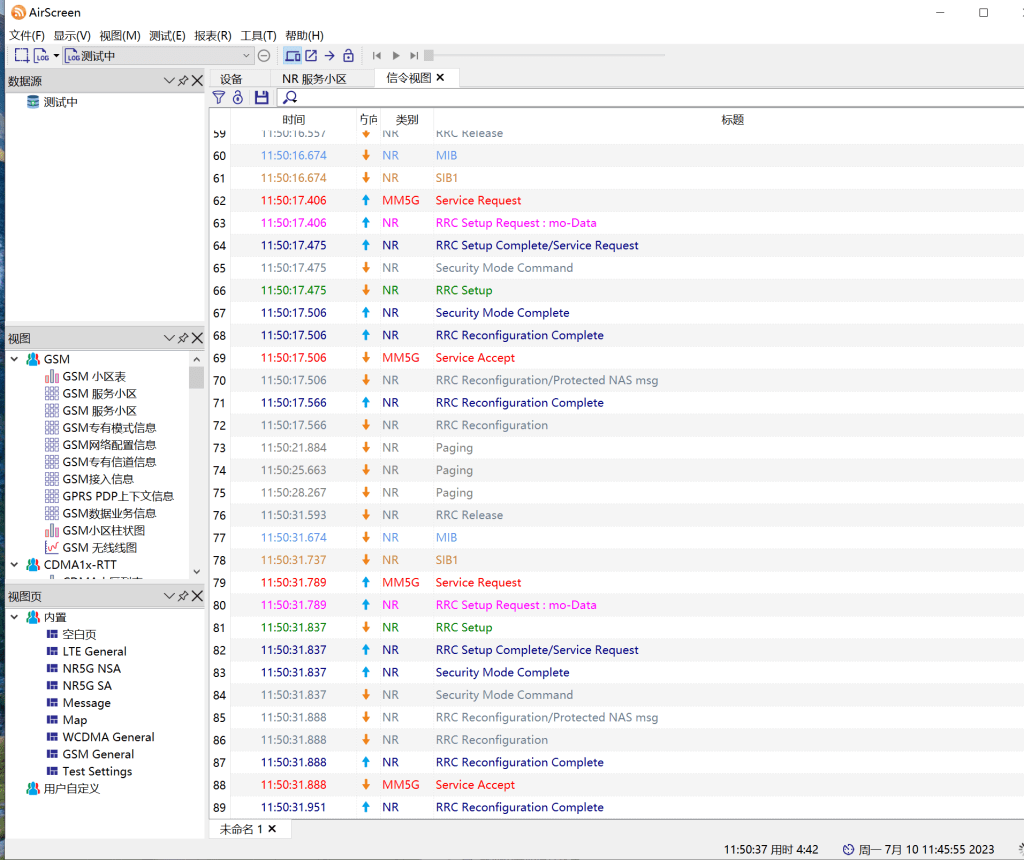

启用三星Exynos调试端口

adb shell
su
resetprop ro.bootmode usbradio
resetprop ro.build.type userdebug
setprop sys.usb.config rndis,acm,dm,adb
setprop persist.vendor.usb.usbradio.config dm

参考

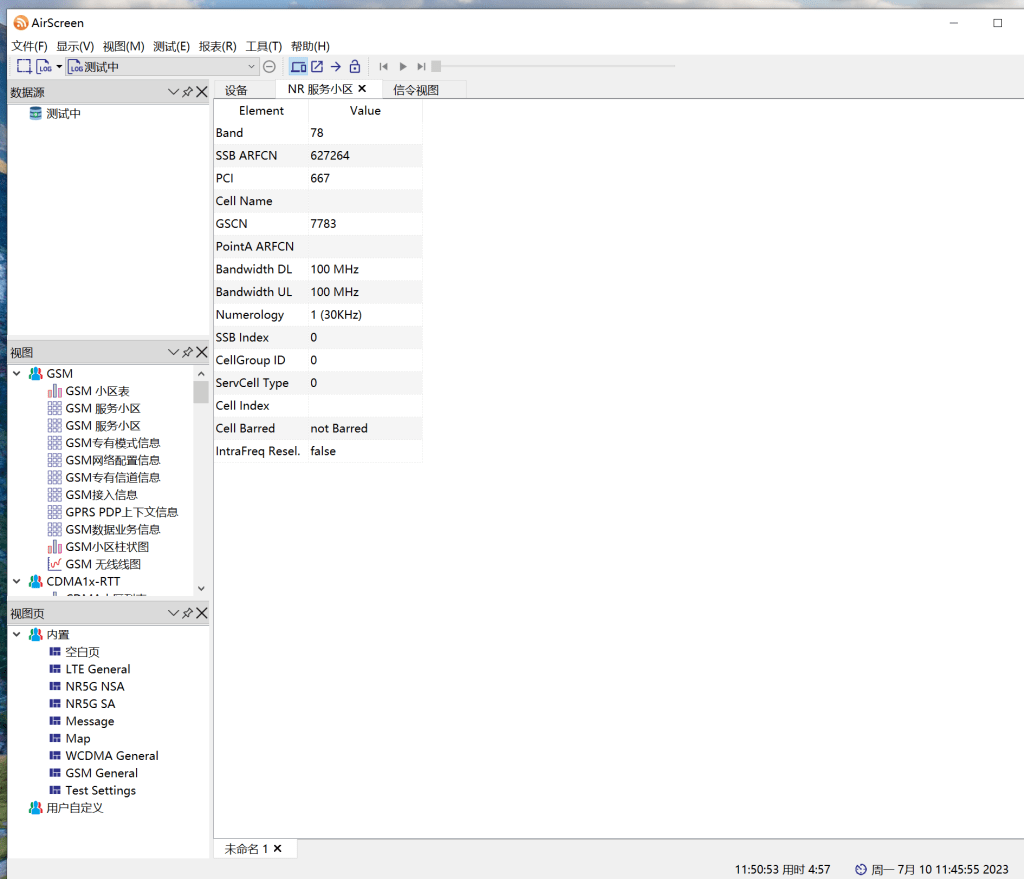

网优日记：使用AirScreen分析 4G 5G
